Name: Assembled Flush Door Manufacturing Machine Lock Hinge CNC Wood Door Making Machine
Brand: shuping
Price: 10000 USD

Brand Name : shuping

Model Number : DFH

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 10pcs/40 work days

Delivery Time : 35-40 work days

Packaging Details : Bubble wrap packaging

Production Capacity : 8-12m/min

Dimension : 5500mm*800mm*1200mm

Weight : About 5T

Material : Steel

Roller Material : Cr12

Frequency : 50Hz

Control System : PLC

Power Source : Electric

Cutting Type : Hydraulic Cutting

Power : 7.5kW

Voltage : 380V

Price : $10000-$50000

Contact Now

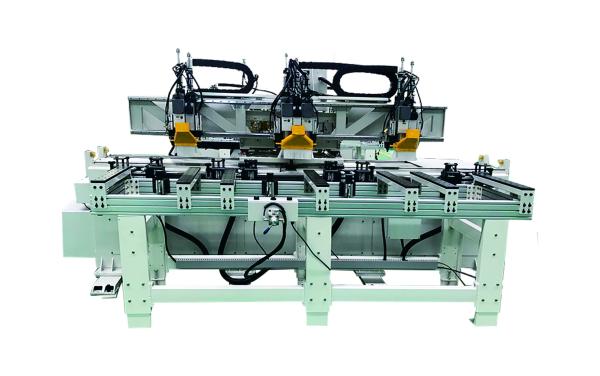

Door Frame Lock & Hinge Processing Center

Door cover lock tongue hinge processing center

For assembled door production to become more rapid & accurate,easy to assemble

Processing range:Horizontal Frame drilling and milling for assembled doors,cabinet doors,wall panels.

Technical parameters
Working Lengh	1800-2600mm
Working Width	90-400mm
Working Thickness	20-45mm
Motor Power(Lock tongue hinge with milling shaft)	3.0KWX3
Motor Power(Lock tongue hinge with reverse milling)	0.75KWX3
Overall Dimensions	4000X2000X2200mm

Characteristics	Description
Efficiency	Three machine heads process hinges simultaneously, improving processing efficiency.
Accuracy	The upper surface of the material is used as the datum level to avoid errors caused by material thickness variations.
Aesthetics	The machine head is equipped with an explosion-proof milling cutter to ensure the beauty of hinge installation.
Flexible	Single machine can be connected.
